You may start looking for an automatic packing machine after noticing the same frustrating problems every day. Orders are waiting. Workers are rushing. Some boxes contain too much filler, while others are not sealed correctly. Labels are crooked, product counts are inconsistent, and your packing area becomes crowded before lunch.

An automatic packing machine can solve many of these problems, but only when you choose the right system and prepare your workflow correctly. Buying the fastest machine on a supplier's website does not automatically give you the fastest packing line. Your product, package size, feeding method, inspection process, employees, and surrounding equipment all affect the final result.

This guide explains what an automatic packing machine does, how different systems compare, how to estimate the capacity you need, and how to avoid costly buying mistakes. You will also learn two simple formulas that can help you calculate production speed and financial payback before signing a purchase agreement.

Key takeaway: The best automatic packing machine is not necessarily the machine with the highest advertised speed. It is the machine that can repeatedly pack your real products with acceptable quality, safe operation, manageable changeovers, and predictable operating costs.

What Is an Automatic Packing Machine?

An automatic packing machine is equipment that completes one or more packaging steps with limited manual handling. Depending on the design, it may measure a product, form a bag, fill a container, seal a package, print a code, apply a label, inspect the finished pack, place products in a carton, or prepare cases for shipping.

Packaging machinery can be used for primary, secondary, and tertiary packaging. Primary packaging directly contains the product, such as a snack pouch or shampoo bottle. Secondary packaging groups individual products, such as a carton holding several bottles. Tertiary packaging prepares larger units for transportation, such as wrapped pallets.

The Wikipedia overview of packaging machinery provides a useful introduction to common processes, including filling, sealing, labeling, wrapping, cartoning, weighing, and palletizing. It is a helpful starting point when you are still learning the names of different machine categories.

Automation also exists at different levels. A semi-automatic sealer may require you to position every bag by hand. A fully automatic form-fill-seal system may create the package, measure the product, fill it, close it, and move it to inspection without an operator touching each unit.

1. Match the Machine to Your Real Product

The first step is not choosing a machine. It is defining exactly what must travel through the machine.

Write down the product's dimensions, weight, shape, surface, temperature, texture, and behavior. A rigid box moves differently from a soft pouch. Fine powder behaves differently from coffee beans. A liquid can foam or splash. Frozen food may create condensation. Fresh bakery products may be easily crushed.

Small differences can completely change the required feeding, filling, and sealing system. For example, a general-purpose auger filler may be appropriate for a free-flowing powder, but a sticky product may collect on surfaces and cause inconsistent doses. A conveyor that handles stable cartons may not reliably control flexible bags that fold or rotate.

Record More Than the Average Size

Do not measure only one perfect sample. Measure several products and packages from normal production. Record the smallest, largest, lightest, and heaviest examples you expect the machine to handle.

Imagine that you pack handmade soap bars. Most bars are 100 millimeters long, but some are 103 millimeters after cutting. If a machine is adjusted only for the perfect 100-millimeter sample, the longer bars may jam at the guide rails or tear the wrapping film.

You should also test the packaging material. Film thickness, stiffness, friction, heat-sealing layer, roll diameter, and print registration can affect performance. A material that works well during hand packing may not unwind, track, fold, or seal reliably at automatic speeds.

Create a Product and Package Matrix

A simple spreadsheet is enough. List every product on one row and record its package type, size range, target weight, required label, planned speed, and cleaning requirements.

This matrix helps you see whether you need one flexible machine or two specialized systems. It also prevents you from buying equipment for your best-selling product while forgetting the smaller products that still make up an important part of your weekly schedule.

Success indicator: A supplier should be able to explain how the proposed automatic packing machine handles your minimum and maximum product conditions, not just your most convenient sample.

2. Choose the Correct Packing Process

The phrase automatic packing machine covers many types of equipment. Before comparing models, identify the packaging process that matches your product and sales channel.

Consider a small coffee company. It may need a weighing system, bag former, filler, sealer, date coder, checkweigher, and case-packing station. Buying only a fast bagging machine will not solve the entire problem if workers still measure coffee manually or wait for labels at the next station.

Now consider an online clothing seller. The business may benefit more from an automatic bagging and labeling system connected to order data. Filling accuracy is not the main concern. Correct product identification, bag size selection, shipping labels, and order matching matter more.

For a third example, imagine a small beverage producer. The automatic packing machine may need to control container feeding, liquid filling, cap placement, label application, date coding, and case packing. Hygiene, spill control, and cleaning access become major selection factors.

3. Calculate the Speed You Actually Need

Machine suppliers often advertise maximum speed in packages per minute. That number can be useful, but it may represent ideal products, ideal materials, a skilled operator, and uninterrupted production.

Your real line speed may be lower because of product refilling, film changes, cleaning, inspections, label roll replacement, jams, planned breaks, or size changeovers.

Formula 1: Required Packing Rate

Required packing rate = Weekly package demand ÷ Available operating minutes

Weekly package demand means the number of finished packages you need. Available operating minutes means the time when the machine is expected to run after planned breaks, cleaning, meetings, and changeovers have been removed.

Suppose you need to pack 48,000 units each week. You plan to operate for five days, with two seven-hour production shifts per day.

Total scheduled time: 5 days × 2 shifts × 7 hours × 60 minutes = 4,200 minutes.

If cleaning, breaks, material changes, and planned inspections use 20 percent of that time, your available operating time is approximately:

4,200 × 0.80 = 3,360 minutes.

Your required average rate is therefore:

48,000 ÷ 3,360 = 14.3 packages per minute.

You should not immediately buy a machine rated for only 15 packages per minute. That leaves almost no room for unexpected stops, future growth, or slower products. A system that can reliably produce 20 to 25 acceptable packages per minute with your actual product may offer a more practical margin.

However, a 100-package-per-minute machine may also be unnecessary. It could cost more, require more floor space, use more expensive materials, and create pressure on your feeding and downstream inspection equipment.

Measure Good Packages, Not Machine Cycles

A machine that cycles 30 times per minute does not necessarily produce 30 saleable packages per minute. If two packages are rejected because of poor seals, incorrect weights, unreadable codes, or damaged products, your useful output is lower.

Ask suppliers to separate mechanical speed from validated production speed. During a test, count good finished packages over a meaningful period rather than watching a short demonstration.

Practical test: Run your product and your packaging material for at least long enough to include normal refilling, adjustment, and minor interruption conditions. A five-minute perfect demonstration may not reveal problems that appear after the film roll heats up, product dust builds, or the hopper level changes.

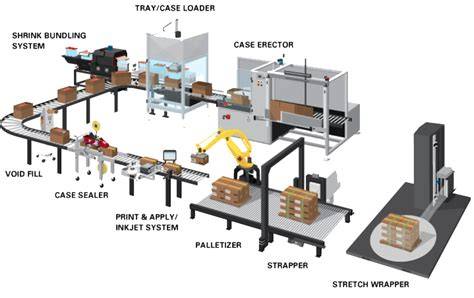

4. Design the Entire Workflow Around the Machine

An automatic packing machine is only one part of a production system. If workers cannot supply products quickly enough, the machine waits. If the inspection station is too slow, finished packages accumulate. If cartons are stored across the room, employees spend time walking instead of monitoring quality.

Start by drawing the complete flow:

1. Raw product arrives at the packing area.

2. The product is inspected or prepared.

3. The product enters the machine.

4. The package is formed, filled, and closed.

5. The package receives a code or label.

6. The finished package is inspected.

7. Accepted packages enter cases or shipping containers.

8. Rejected packages are separated and recorded.

Look for places where products stop, reverse direction, cross employee walkways, or wait in uncontrolled piles. These points often become hidden bottlenecks.

Use Buffers Carefully

A small accumulation conveyor can prevent one short interruption from stopping the entire line. However, a large pile of unfinished or unidentified packages may hide problems and create mix-ups.

For example, a labeler may stop for two minutes while the packing machine continues. A controlled buffer can hold the temporary output. Once the labeler restarts, the line recovers without wasting product.

But if you pack several similar flavors, excessive accumulation can make it difficult to confirm which label belongs to which product. Your buffer needs clear limits, sensors, and procedures.

Plan for Changeovers

A machine may run quickly but lose hours during size changes. Ask how long it takes to change film, guides, filling components, cartons, label data, and inspection settings.

Watch the changeover rather than accepting a brochure number. Determine whether tools are required, whether parts are heavy, and whether settings are clearly marked. Recipe storage, numbered adjustment points, quick-release parts, and guided instructions can reduce mistakes.

Key takeaway: A slightly slower machine with a 15-minute changeover may produce more weekly output than a faster machine requiring 90 minutes every time you switch products.

5. Put Safety, Cleaning, and Compliance First

Automatic equipment contains conveyors, rollers, belts, cutters, heaters, sealing jaws, motors, pneumatic cylinders, and other moving components. These systems can create pinch, crush, cut, entanglement, burn, and electrical hazards.

OSHA's general machine-guarding rule requires guarding against hazards such as points of operation, rotating parts, and ingoing nip points. The OSHA machine-guarding requirements explain the federal baseline that U.S. employers should review when evaluating equipment and workplace safeguards.

You should also review the PMMI packaging machinery standards and regulations resource. It identifies ANSI/PMMI B155.1-2023 as a safety standard covering new, modified, and rebuilt machinery used for primary, secondary, and tertiary packaging.

Important safeguards may include fixed guards, interlocked doors, emergency stops, light curtains, safe control systems, warning labels, lockout provisions, and documented risk assessments. The correct solution depends on the hazard and the way operators, cleaners, and maintenance workers interact with the machine.

Do Not Test Safety Only in Normal Production

Many injuries occur during clearing, cleaning, adjustment, troubleshooting, or maintenance rather than smooth production. Ask what happens when a bag jams near a sealing jaw or when a product falls below the conveyor.

A common mistake is assuming that an emergency stop makes every intervention safe. An emergency stop is not a replacement for an appropriate energy-control procedure. Stored pneumatic pressure, gravity, heat, and unexpected movement may remain hazardous after normal motion stops.

Food and Product-Contact Requirements

If you package food, supplements, cosmetics, pharmaceuticals, or medical products, material compatibility and cleaning access become critical. Surfaces may need to resist corrosion, prevent product buildup, and allow inspection and sanitation.

The FDA food packaging and food-contact substances resource provides official information about substances and materials intended to contact food. It is useful when you are checking packaging films, coatings, adhesives, containers, and other food-contact components.

Do not assume that stainless steel automatically makes a machine sanitary. Weld quality, hollow frames, exposed threads, trapped liquid, difficult-to-remove guards, horizontal ledges, and inaccessible product zones can still create cleaning problems.

6. Check Coding, Barcodes, Inspection, and Traceability

A package is not complete just because it is closed. It may also need a batch code, production date, expiration date, ingredient label, shipping label, barcode, weight confirmation, seal inspection, or foreign-material check.

These steps should be included in the original line design. Adding them later can create awkward conveyor transfers, communication problems, and extra control panels.

The GS1 barcode standards resource explains how standardized barcodes support electronic scanning and product identification across retail and distribution systems. It is a practical reference when you need to confirm which barcode format fits your sales channel.

Verify That Systems Communicate

The packing machine, printer, labeler, scanner, checkweigher, and reject station should exchange clear status information. For example, the line should not continue making packages if the printer is offline and a required date code is missing.

Ask the supplier what happens during each failure:

• Does the machine stop when coding data are unavailable?

• Does the inspection system reject only the affected package?

• Is the rejected package physically separated?

• Does the screen explain why the package was rejected?

• Can you retrieve production and rejection totals later?

A useful system does more than generate alarms. It helps you identify the cause and return to production without guessing.

Choose the Right Inspection Level

Not every application needs every available sensor. A simple shipping operation may need barcode confirmation and label presence. A regulated food line may require more detailed controls for weight, seals, codes, contaminants, and traceability.

Your inspection plan should be based on product risk, customer requirements, legal obligations, recall exposure, and the cost of a defective package reaching the market.

7. Calculate the Full Cost and Expected Payback

The purchase price is only one part of the investment. Include conveyors, guarding, fillers, printers, sensors, tooling, installation, freight, electrical work, compressed air, floor preparation, software, training, spare parts, validation, and production downtime during installation.

You should also estimate ongoing costs:

• Packaging materials

• Electricity and compressed air

• Preventive maintenance

• Replacement wear parts

• Cleaning labor

• Technical support

• Software or data subscriptions

• Rejected products and packaging

Formula 2: Simple Payback Period

Payback period in months = Total installed investment ÷ Monthly net savings

Monthly net savings means the money saved after additional operating expenses have been removed. It may include reduced packing labor, lower material waste, fewer damaged products, less overtime, and increased contribution from additional saleable output.

Suppose the complete installed system costs $180,000. You estimate the following monthly changes:

• Labor and overtime reduction: $11,000

• Lower packaging waste: $2,500

• Additional maintenance and utilities: -$2,000

Your estimated monthly net savings are:

$11,000 + $2,500 - $2,000 = $11,500.

The simple payback period is:

$180,000 ÷ $11,500 = 15.7 months.

This is a planning estimate, not a guarantee. Create a conservative case, an expected case, and a strong case. If the investment works only when every assumption is perfect, the project carries more financial risk.

Note: These figures are simplified planning examples, not industry averages. Your results depend on product flow, package design, machine speed, staffing, changeovers, and downtime.

Include Material Efficiency

A poorly adjusted automatic packing machine can consume more material than manual packing. It may create oversized bags, long seals, unnecessary film overlap, excessive stretch film, or frequent startup waste.

Ask the supplier to show the expected material consumption per package. Then test whether the proposed material thickness and package dimensions still protect the product through storage, handling, and shipping.

The EPA sustainable packaging resource explains how lighter and more efficient packaging can reduce discarded material and may lower business costs. It is useful when comparing package protection, material use, and waste prevention instead of focusing only on whether a material is recyclable.

Three Costly Mistakes You Can Avoid

Mistake 1: Buying Based on Brochure Speed

A growing snack company buys a machine promoted at 80 bags per minute. During production, the lightweight chips break during feeding, film tracking requires frequent adjustment, and workers cannot refill the product fast enough. The line averages only 35 acceptable bags per minute.

Why it failed: The company purchased theoretical mechanical speed rather than demonstrated output with its real product.

How you avoid it: Require a product trial, define an acceptable package, and measure good output over a realistic run.

Mistake 2: Ignoring Changeover Time

A personal-care company packs eight bottle sizes. Its new machine runs quickly after setup, but changing guides, filling nozzles, cap parts, labels, and recipes takes nearly two hours. Because the company changes products twice a day, the weekly capacity is far below the original estimate.

Why it failed: The buying team compared production speed but did not include product-switching time.

How you avoid it: Observe a complete changeover during the acceptance test and include changeover minutes in your capacity formula.

Mistake 3: Forgetting Downstream Work

An ecommerce warehouse automates bagging, but employees still scan, sort, and place each finished order into transport containers manually. Packages leave the machine faster than workers can handle them, creating a pile near the discharge conveyor.

Why it failed: One operation was automated while the rest of the workflow remained unchanged.

How you avoid it: Measure every step from order release to shipping handoff and identify the slowest connected process.

How to Compare Automatic Packing Machine Suppliers

Send suppliers the same written specification so you can compare answers fairly. Include product information, packaging drawings, materials, required output, cleaning method, environment, utilities, safety expectations, coding requirements, available floor space, and future products.

Ask each supplier to define what is included and excluded. A quotation may look inexpensive because conveyors, tooling, installation, startup support, or inspection equipment are not included.

Questions Worth Asking

• What sustained speed can the machine achieve with my actual product?

• What package-quality limits are guaranteed?

• Which product samples and materials are required for testing?

• How long does a normal size change take?

• Which parts must be changed between products?

• What daily and weekly cleaning tasks are required?

• Which components are expected to wear?

• Are common spare parts available locally?

• What remote and on-site support is included?

• Who is responsible for connecting upstream and downstream equipment?

• What operator and maintenance training will be provided?

• How will final acceptance be measured?

You can use a free spreadsheet to score each proposal. Create categories for product handling, speed, package quality, safety, cleaning, changeover, service, integration, energy use, and total cost.

For more detailed monitoring after installation, ask the machine supplier about built-in production reports or compatible line-monitoring software. Paid systems may track downtime reasons, reject counts, speed losses, alarms, and maintenance events. Request a demonstration using sample production data before purchasing additional software.

Run a Meaningful Acceptance Test

A factory acceptance test gives you a chance to verify the machine before it reaches your facility. A site acceptance test confirms performance after installation.

Your test document should define the product, material, package dimensions, run duration, target speed, acceptable reject rate, changeover procedure, safety checks, utilities, and required records.

Do not rely on statements such as "runs well" or "acceptable quality." Define measurable conditions. For example:

• Average output of at least 24 accepted packages per minute

• Package weight within the agreed tolerance

• Readable date code in the specified location

• Continuous seals without wrinkles across the product area

• Automatic rejection of packages missing the required code

• Changeover completed within 25 minutes by trained staff

Test difficult conditions too. Use the smallest package, largest package, lightest product, heaviest product, and normal material variations. Verify restart behavior after an emergency stop, material replacement, product shortage, and downstream blockage.

Prepare Your Team Before Installation

Automation changes jobs rather than simply removing them. Employees may spend less time sealing boxes and more time loading materials, monitoring quality, changing products, recording downtime, and performing preventive maintenance.

Select operators before installation and include them in testing. They often notice practical issues that managers and engineers miss, such as awkward roll-loading height, poor screen visibility, difficult cleaning access, or insufficient storage near the machine.

Training should cover normal startup, shutdown, size changes, quality checks, alarm response, cleaning, safe jam removal, and escalation procedures. Maintenance employees need deeper training on controls, sensors, drives, pneumatics, lubrication, replacement parts, and energy isolation.

Success indicator: Your team should be able to run a normal product, recognize a defective package, respond to common alarms, and complete an approved changeover without depending on the supplier for every small adjustment.

Your Practical Automatic Packing Machine Checklist

Before approving a project, confirm that you can answer these questions:

• Which exact packaging steps will be automated?

• What product and package variations must be handled?

• What is the required average rate of good packages?

• How much planned and unplanned downtime is realistic?

• What equipment feeds the machine?

• What happens after the package leaves the machine?

• Which inspections and codes are required?

• How will employees clean and maintain the system?

• Which safety standards and risk assessments apply?

• What utilities and floor changes are necessary?

• What is the complete installed cost?

• What monthly net savings support the payback estimate?

• How will acceptance be measured?

• Who will provide service and spare parts?

Final Thoughts

An automatic packing machine can make your operation faster, more consistent, and easier to scale. It can reduce repetitive handling, improve package uniformity, connect coding and inspection steps, and give you clearer production data.

But automation works only when the complete process is considered. Start with your product. Define the package. Calculate the required rate. Study the full workflow. Review safety and cleaning. Verify coding and inspection. Then calculate the complete cost using conservative savings assumptions.

Remember the two core formulas:

Required packing rate = Package demand ÷ Available operating minutes

Payback period = Total installed investment ÷ Monthly net savings

Use those calculations with real samples, realistic downtime, measurable acceptance standards, and direct input from the people who will operate the equipment. When you take that approach, an automatic packing machine becomes more than an expensive piece of hardware. It becomes a practical, controlled system that helps you deliver better packages with less daily confusion.
